My PREY themed Xbox 360 - Almost finshed

In leiu of one of my favorite games I decided to legally mod my xbox 360 with a PREY theme to it. I don't know what inspired me to do so, but I did, and it is turning out really well. All I have to do is wax the box for a mirror shine, and finish one of my etchings that has the 3D Realms logo on it with "P R E Y" underneath. It is a rough draft, and will look great with the blue lighting in my midnight black painted box. I have cut and etched many windows and will post you a series of pictures that describes my progress from finish to near end.

After weeks of debating on what would look best and how I was gonna go about this, I have officially began my PREY WIP! I haven't gotten too far, as I am still waiting for lights, parts, fans, etc, but I have had a pill shaped window cut into the HDD and Lit up with blue LED's, as had the XX Cut out underneath the motherboard and that is lit up with blue LED's as well. Also changed the SMDs on the ROFLs to blue ones. I have included pictures of those, as well as where I plan on putting the logo on the box. I am also going to etch a smaller Hawk logo in the XX plexiglass window that was cut underneath the mobo that will light up nicely because of the blue LEDs. I plan and have included a pic of where I am going to cut the Hawk logo without the lettering on the top side of the box. I plan on etching the plexi behind the cutout to give the hawk a nice glow. I will also cut a rectangular window below the hawk as well....I will be including further pictures and updates as I make cuts and parts arrive, etc. Oh yeah, I plan on using some automotive paint to paint the box midnight black and will polish it when complete! If anyone has suggestions while I keep updating with photos, please feel free to chime in and tell me of something that might look cool.

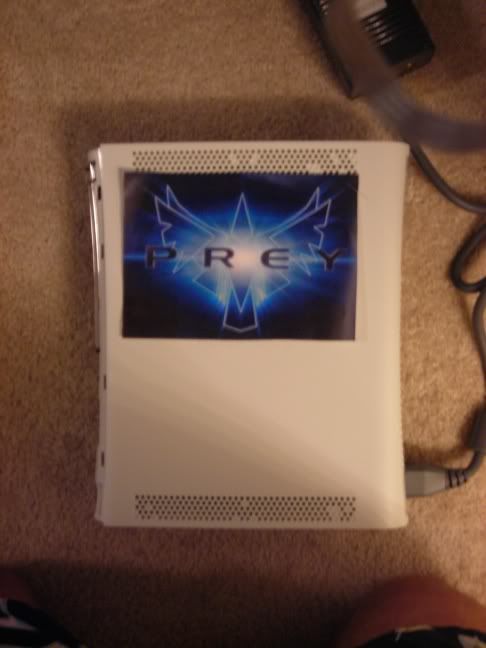

1st Pic of where "Main" Hawk Logo will be (With window underneath

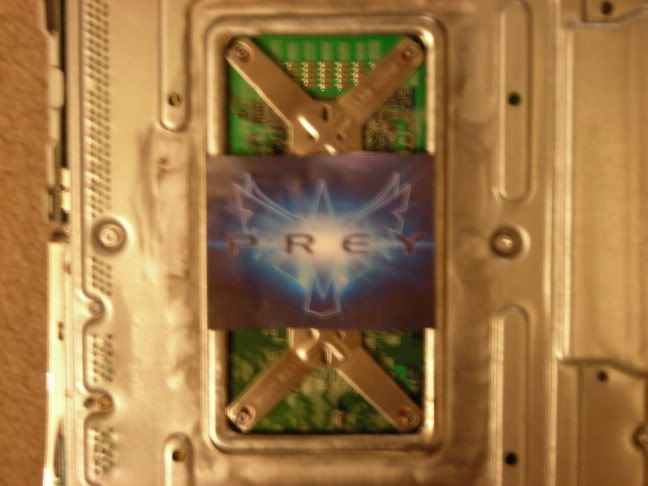

2nd Pic of where "etched" hawk logo will be on XX MOBO window

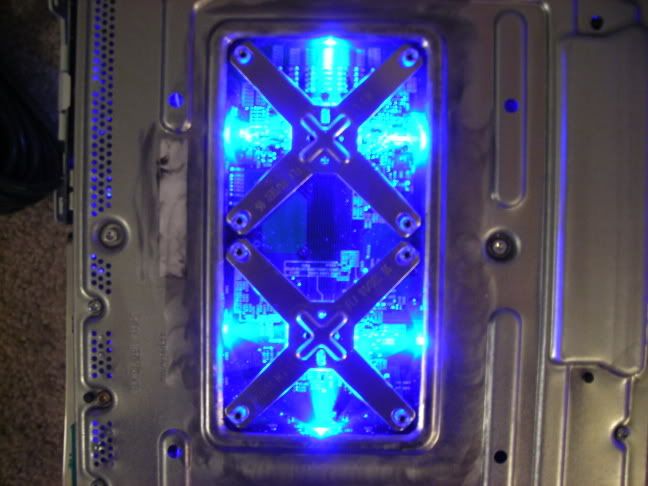

XX Lit Up on MOBO

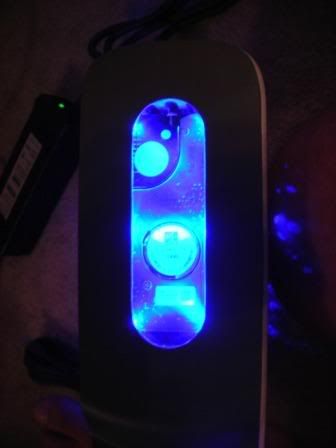

HDD lit up

http://i114.photobucket.com/albums/n...P/HDDLitUP.jpg

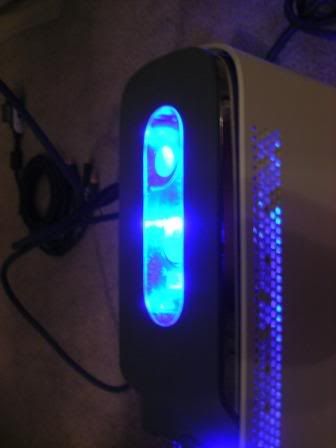

HDD Lit Up 2nd Angle

http://i114.photobucket.com/albums/n.../HDDLitUp2.jpg


continued in next post

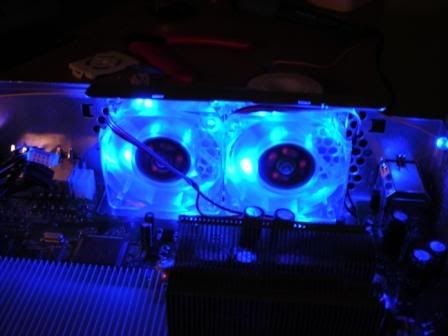

Fans

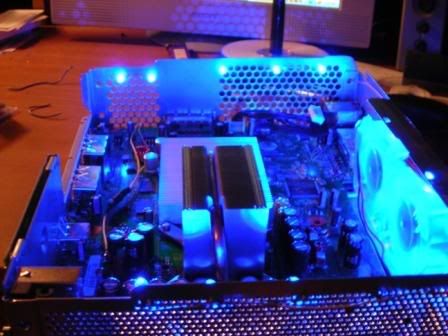

LEDs In vents on both sides

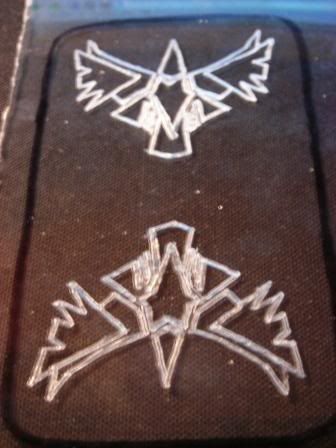

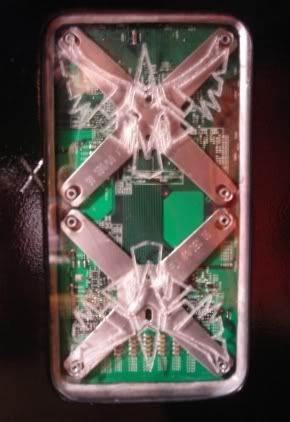

DUAL HAWKAGE

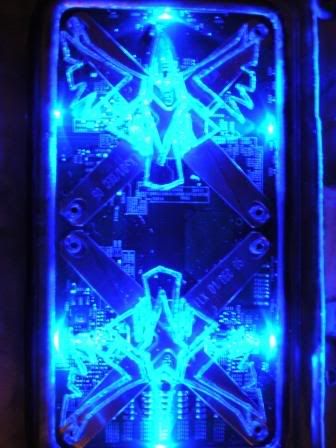

Here are what they look like up on the lights of the XX window

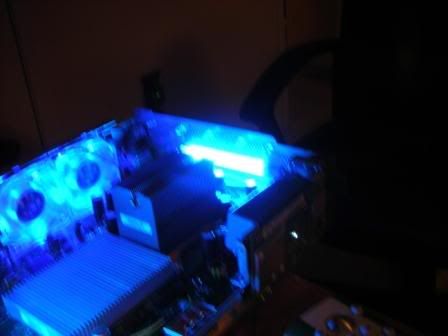

Back 2 Back CCFLs

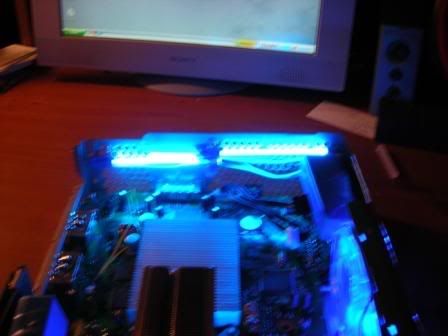

Side by Side CCFLs

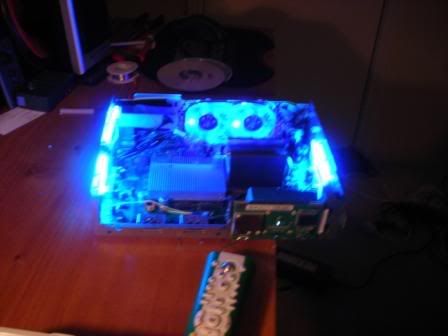

WHole setup

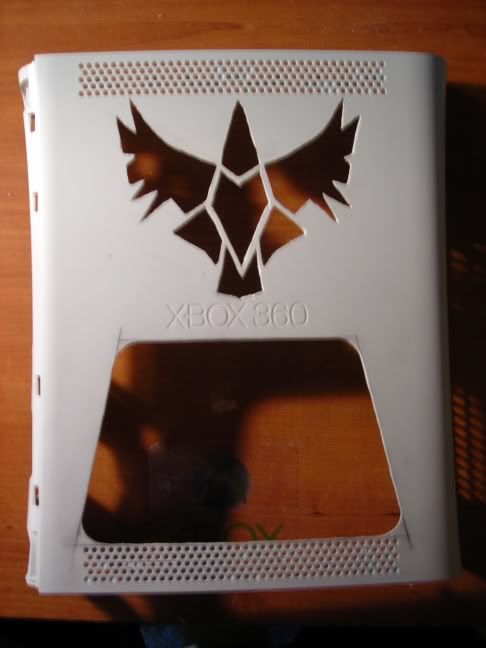

ust finished the rest of my top case cut out...here it is:

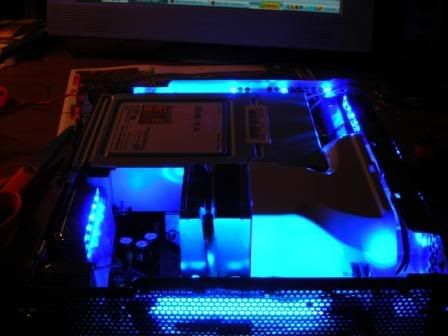

I had to change the original positioning of the lazerlights to make it look better....in this pic you can see one light to the left of the heatsink, and then the other is to the right of the DVD drive...much better

This is my rough draft of the bottom window etching with the 3d Realms Logo

img]http://i114.photobucket.com/albums/n265/djbizwy/PREY%20WIP/bottomwindowetch.jpg[/img]

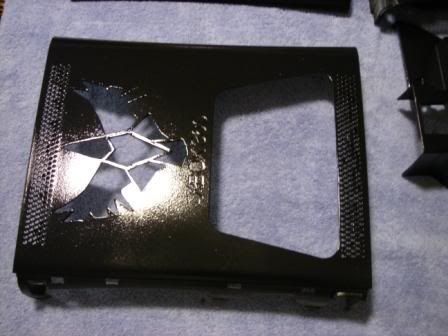

Here is the finalized paint job before I wax and buff and then I am finished!

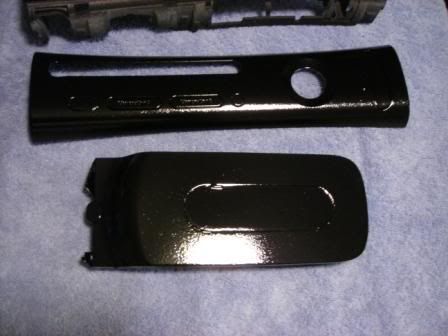

HDD & Faceplate



Top of case



Bottom of case

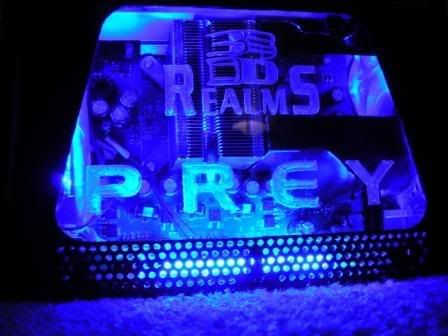

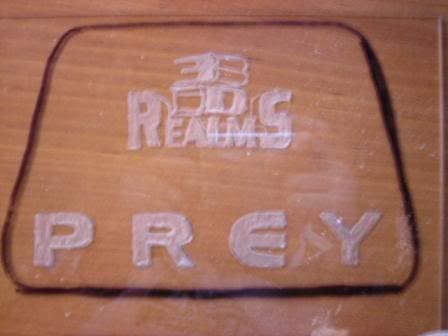

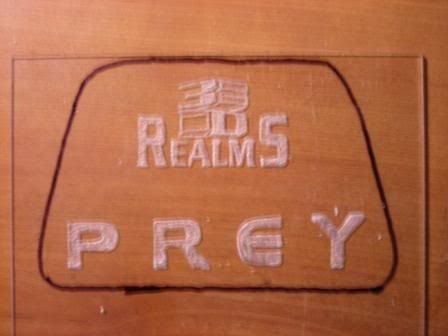

Final Etching...I hope y'all like. If not I will change it or retry. I have PLENTY of LEXAN. THis picture doesn't do it justice either




I hope you guys like what I have done. I am going to make the etching on the window a little better so that the 3D Realms logo can be seen more clearly!

Enjoy!
-Djbizwy

[Luke]

You farking crazy nut...
I love it!

[ZaphodB]

That's awesome. Love case mods.

Originally Posted by Luke

You farking crazy nut...
I love it!

Originally Posted by ZaphodB

That's awesome. Love case mods.

thanks guys, I like to hear positive feedback! Hopefully some of the 3D Realms staff will take a look at it and like it! I would love to get praise from them!

[Assault]

Holy Mosses, that is cool. The LEDs would work great with those cutouts. Great work, post pictures when you're done.

[Phayzon]

Coolness!

[ADM]

Very nice! Keep us updated!

[Luke]

what are you using to do all this?

Originally Posted by Luke

what are you using to do all this?

I don't know what you mean? A stock 360, dremel rotary tool, soldering iron to solder wires to light up cold cathode lights, LEDs, paint, etc.

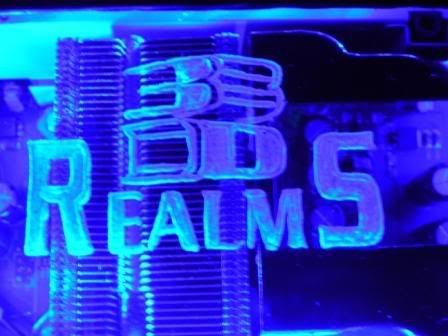

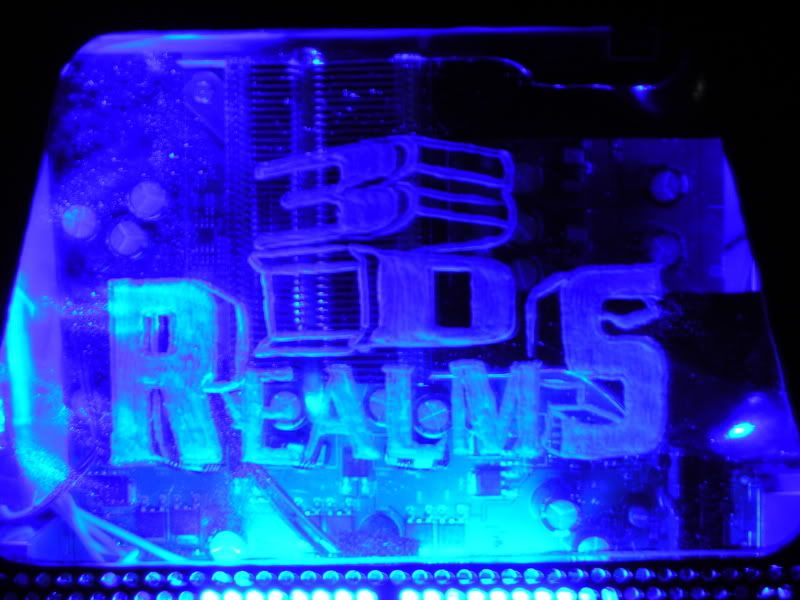

here is what it looks like with the case and plexi on the system all lit up...in the pics it looks like you can't decipher the "REALMS" part, but you completely can...it is crystal clear, but the camera caught that light at a weird angle.

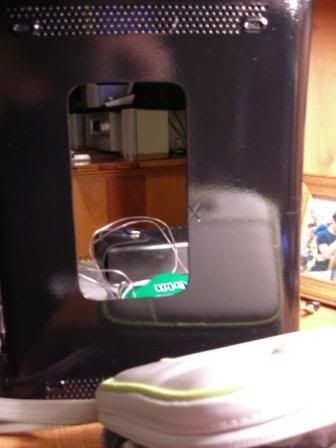

HERE IS THE MIRROR FINISH ON THE BOX AFTER THE WAXING




Hope y'all like! I am going to make one more attempt at etching a good window, and then I will call it quits after that!

Please give me some feedbacks!
-Djbizwy

[d3ad connection]

That looks awesome.

[IceColdDuke]

Aside from the fact you have way to much ****ing time on your hands , thats definetetlly tight.

Originally Posted by IceColdDuke

Aside from the fact you have way to much ****ing time on your hands , thats definetetlly tight.

hahahaha.....Actually, I am a commercial real estate broker in houston and work 10+ hours a day. I only do this when I get off of work, or on the weekends for an hour or 2 max at a time... This project has been underway for 3 1/2 weeks, and thank god it is almost finsihed!

I am glad to hear that y'all like it!
-DjBizwy

[KamisoriX]

now that's sexy baby

[The Dukenator]

Kickass. Take those pics and post them on the Xbox 360 forums.

[ZaphodB]

That is just one bad-ass awesome friggin case. Well done. +10,0000 awesome points.

[MAT]

Wow, it looks fantastic. Well done!

[Joe Siegler]

Hopefully some of the 3D Realms staff will take a look at it and like it!

Oh, we've seen it, and thought it looks badass! I was waiting to see it completed before I jumped in and said something.

I passed it on to Human Head, so they're aware of it as well.

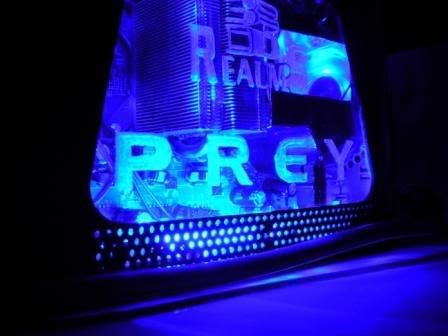

Well I decided to make one more 3D Realms and Prey window etch and it turned out the best...IMO, :lol: I hope you guys like it, cuz no matter what, it is going in tonight and I am putting the box together to never be reopened again. I am going to touch it up a little bit more to make it look close to perfect, although it is pretty tough to do so with a steady hand and a dremel going at 30,000 rpm's. I will keep you guys updated with the finished product!



Let me know what y'all thinks!

DjBizwy

[MAT]

Why don't you make a HumanHead window next? It's their game as well and it's better to have both 3DRealms and Humanhead.

Tip: HumanHead's mascot head might be cool on the window.

Originally Posted by djbizwy

I don't know what you mean? A stock 360, dremel rotary tool, soldering iron to solder wires to light up cold cathode lights, LEDs, paint, etc.

here is what it looks like with the case and plexi on the system all lit up...in the pics it looks like you can't decipher the "REALMS" part, but you completely can...it is crystal clear, but the camera caught that light at a weird angle.





HERE IS THE MIRROR FINISH ON THE BOX AFTER THE WAXING




Hope y'all like! I am going to make one more attempt at etching a good window, and then I will call it quits after that!

Please give me some feedbacks!
-Djbizwy

Now that's freakin awesome

Originally Posted by MAT

Why don't you make a HumanHead window next? It's their game as well and it's better to have both 3DRealms and Humanhead.

Tip: HumanHead's mascot head might be cool on the window.

If you post a HumanHead logo or picture I might be able to add the etching on my HDD window!

[Snowy]

Right now, it looks awsome... But what I think would set it off over the top, would be your xbox 360 on water cooling...
Tutorials on how:
http://www.hardocp.com/article.html?art=OTM5LDE=
http://www.xbox-scene.com/xbox1data/...lllHlcrxQY.php
http://watercooling.50webs.com/1/

It looks pimp right now, but with water cooling... = extra leet.

[MAT]

Originally Posted by djbizwy

If you post a HumanHead logo or picture I might be able to add the etching on my HDD window!

I took this one from the Humanhead website. Maybe one of the Humanhead artists can provide a larger and better logo of the studio.

[ZuljinRaynor]

I'd buy a 360 only if it looked like this one.

Originally Posted by MAT

I took this one from the Humanhead website. Maybe one of the Humanhead artists can provide a larger and better logo of the studio.

Only problem is I have such little room to work with with such a detailed large logo on my small HDD window....I am finishing the box tonight, corrected some minor lettering issues in that window ( I am posting a pic) and will post pictures of the completed box!

Fixed up window:
so i finally corrected the lettering problem on the window. Here it is, and it looks much more consistent:



Let me know if this is much better so I can finally finish this box this afternoon!

-Djbizwy

Originally Posted by ZuljinRaynor

I'd buy a 360 only if it looked like this one.

hahaha, thanks....I think it will be for sale on eBay, but it isn't going to be cheap, because as you have seen, I have put ALOT into this thing!

Y'all should see the final box, all lit up tonight, I promise!

[Telee]

I want that! :'(

[ZaphodB]

Man if I built something like that there'ld be no way I could sell it. That is one of a kind awesome.

[Assault]

You've done great job. It looks amazing.

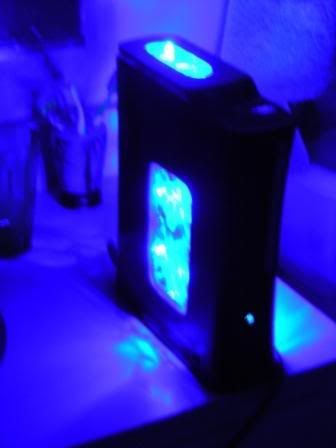

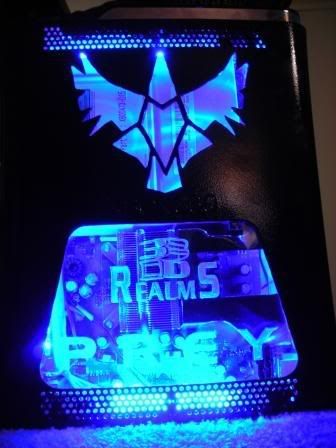

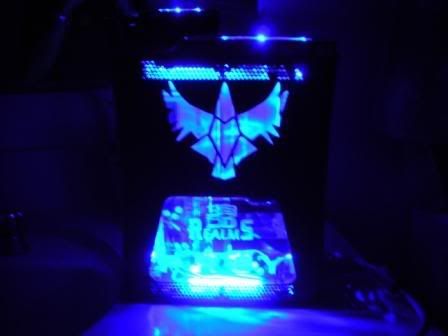

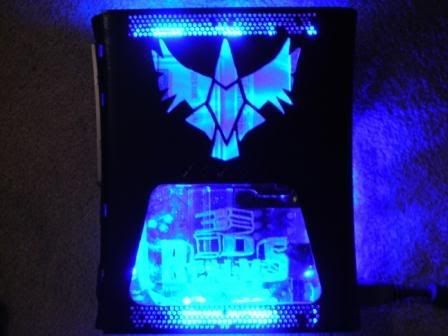

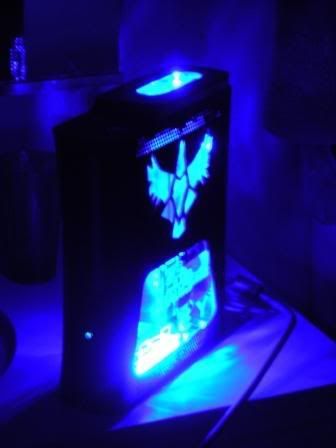

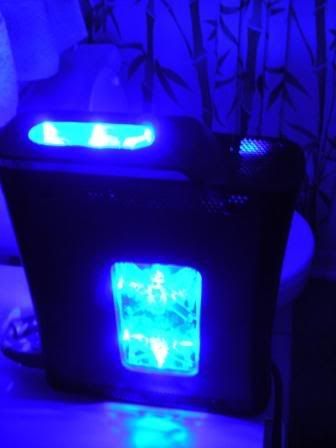

After cursing anything in site during these past 4 weeks, I have finally finished this thing. Most of you know what has been going on, therefore All I want to do is show pictures. BUT the one thing I will say is despite what is shown in a few of the photographs, the bottom window lights up VERY EVENLY, although it may not look so in the pictures. For some reason the camera catches way too much of the light of both CCFLs and disperses it in a weird way. I took the pictures in my completely dark bathroom and that biatch lit up soooo bright! Now, without further adue, the pics...I really hope you guys like them or else y'all will never hear from me again! :lol:

Well that is it...I still have to open back up the box to fiddle around with a few more things, but I hope you guys like....enjoy the pics!

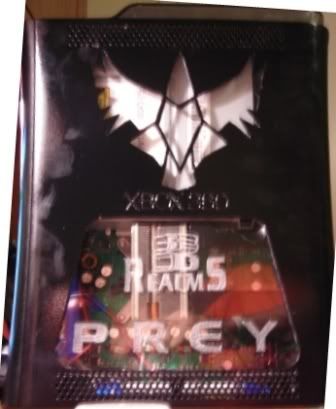

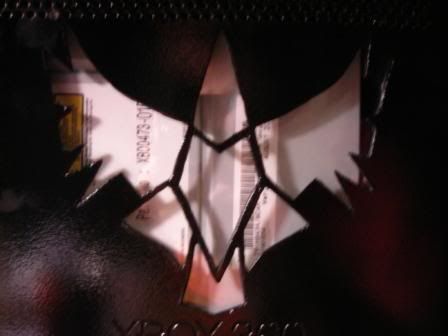

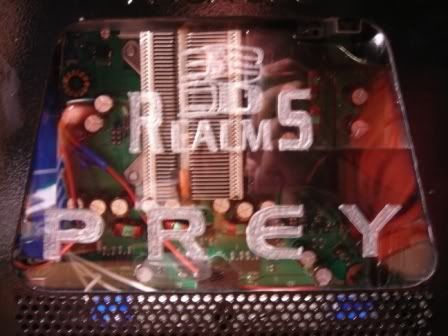

thanks for the positive remarks...I was worried it wasn't going to come out good enough....anyways, here are a few picutures of the box unlit. Please excuse the smudges on the first pic!

[IceColdDuke]

You can do that as a side job . I've nver got the point of decking out a case...but that...is def awesome.

[ZaphodB]

To quote Crush from Finding Nemo : "YOU ROCK DUDE!!!"

[CameO73]

I'm not really into case modding... but this one's done really nice! Great finish and details!

[Water12356]

That actualy makes me want an X-box 360 now. lol
